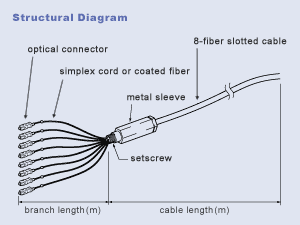

An 8-fiber cable branched into single-fiber cords connectorized individually. The branching point is covered with a metal sleeve which can be directly inserted into the cable lead-in of a branch box, etc. for quick and easy installation as well as protection purpose. Suitable for dropping from a trunk cable used in a CATV network.
Thin and easy to handle.
The 4-fiber ribbon structure enables mass fusion splicing with trunk cables.
Items
Specification
Cable diameter
9mm
Approx. cable weight
70kg/km
Maximum tensile load
780(80kgf)
Minimum bend radius
During installation
180mm
Post installation
90mm
