Stubs/ Optical Receptacles
Summary

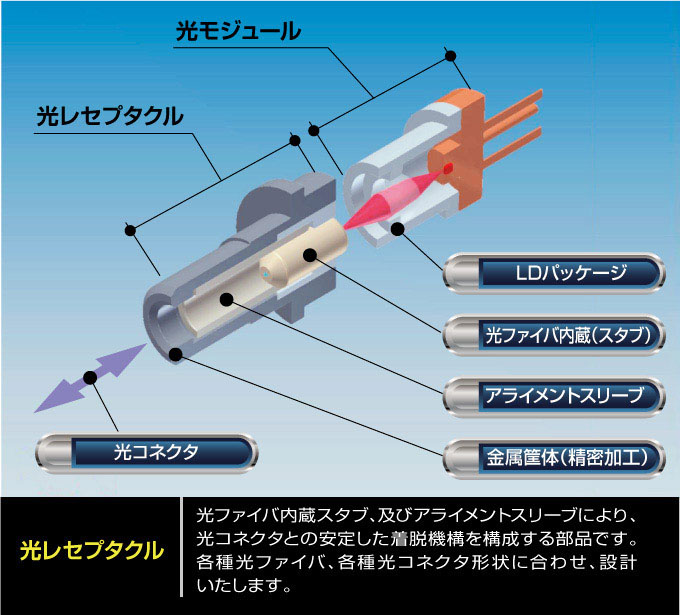

Our optical receptacles, comprised of a fiber stub and an alignment sleeve such as a split or a solid sleeve, are optimally-designed for TOSAs and ROSAs mounted on SFP and SFP transceivers. The stable repeatability and good wiggle performance are realized. SHP can offer the best solution to a structural design.
| Items | Manufacturing range |
|---|---|
| Optical fiber | Single mode, multi mode, and other types |
| Ferrule | ø2.5mm, ø1.25mm, and other types |
| Alignment Sleeves | Split sleeve, precision sleeve, and other specialty sleeves |
| Metal housing | SUS304, SUS303, SUS430, and other materials |
Various types of optical modules [Drawings]: examples
-
- • Conventional LC Type
- • Built-in Stubs/Insulation Type
- • Split Sleeves/Precision sleeves
-
- • Conventional LC Type (Barrel)
- • Built-in Stubs
- • Split Sleeves
- • Precision Sleeves
-
- • Conventional LC Type
- • Stubless/Precision Sleeves
- • Metal Barrel Type
- • Resin Molded Barrel
-
- • LC-XMD Type
-
- • LC-XMD Type (Barrel)
-
- • SC-XMD Type
-
- • LC Fiber Stub
- • Spherical Polish
- • AR Coating
- • Angled Polishing
-
- • SC Fiber Stub
- • Spherical Polish
- • AR Coating
- • Angled Polishing
-
- • LC Fiber Stub
- • Bare-Fiber Sticking-out Type
- • Spherical Polish/AR Coating
- • Angled Polishing
-
- • SC Fiber Stub
- • Bare-Fiber Sticking-out Type
- • Spherical Polish/AR Coating
- • Angled Polishing
Stubs/Fiber Capillaries
Summary of the Product
- Fiber capillaries for a passive alignment device
- Structure with high reliability using carbon-coated optical fibers.
- The endface of the fiber can be finished with AR coating, angled polishing, etc.
- The reflow heat resistance of 250℃ can be added for surface mounted optical device application. Maintains good physical contact after the reflow process.
