Connector　Products

Adapters

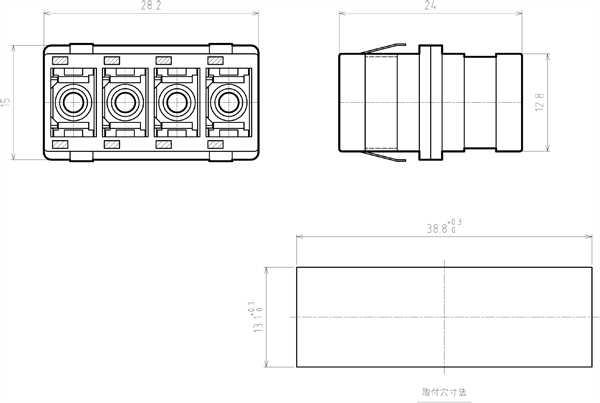

SC2-SC2 (4-position) adapter

individually name part number DXF file
SC2-4A adapter P2382589 Download DXF file

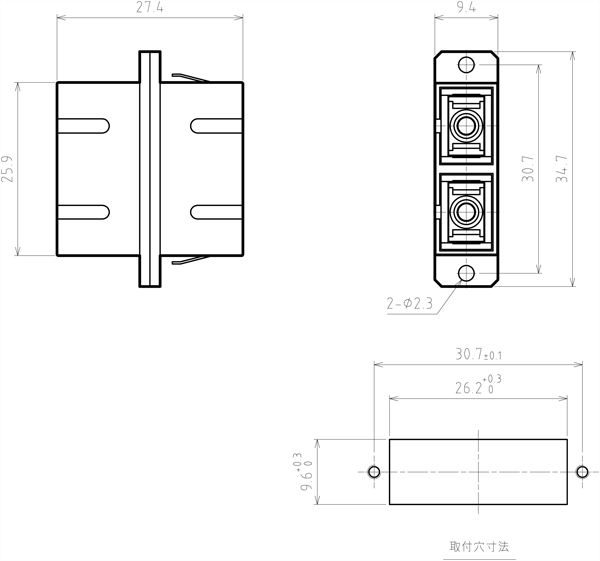

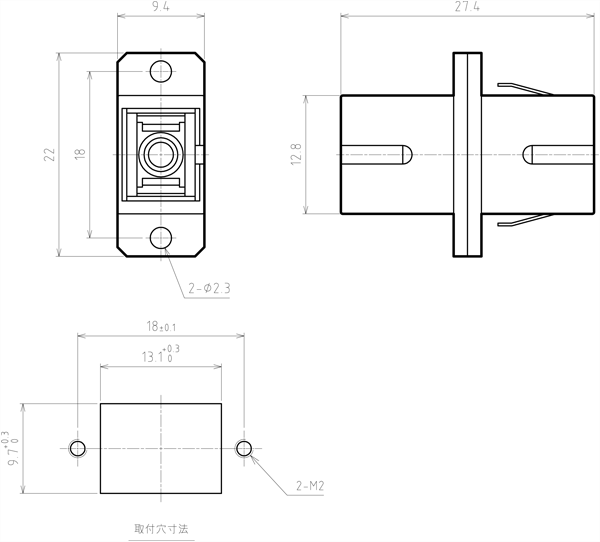

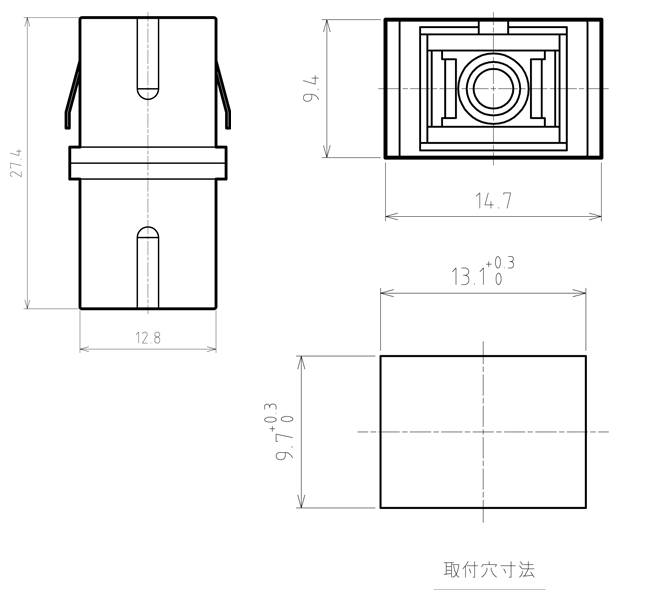

SC-SC adapter

  • SC-SC adapter
  • SC-SC adapter (plastic/short flange)
  • SC-SC/APC adapter (plastic)
  • SC-SC/APC adapter (plastic/short flange)
individually name part number DXF file
SC-SC adapter
(plastic)		 P2382632 Download DXF file
SC-SC adapter
(plastic/short flange)		 P2382633 Download DXF file
SC-SC/APC adapter
(plastic)		 P2382637 Download DXF file
SC-SC/APC adapter
(plastic/short flange)		 P2382638 Download DXF file

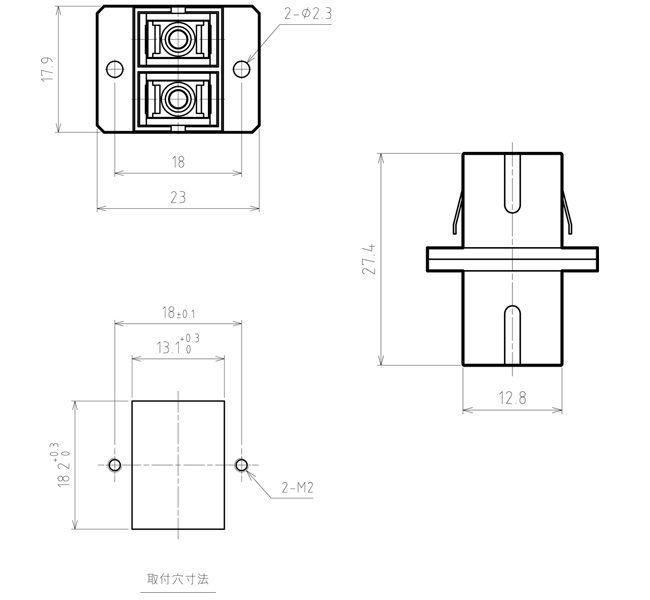

SCF adapter

  • SCF-SCF adapter
  • SCF adapter (short flange)
  • SCF/APC adapter
  • SCF/APC adapter (short flange)
individually name part number DXF file
SCF adapter P2382634 Download DXF file
SCF adapter (short flange) P2382635 Download DXF file
SCF/APC adapter P2382639 Download DXF file
SCF/APC adapter (short flange) P2382640 Download DXF file

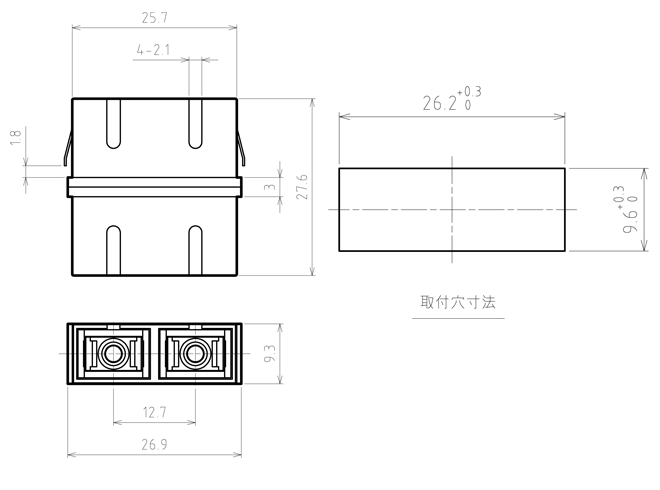

SCH adapter

  • SCH adapter
  • SCH/APC adapter
individually name part number DXF file
SCH adapter P2382636 Download DXF file
SCH/APC adapter P2382641 Download DXF file

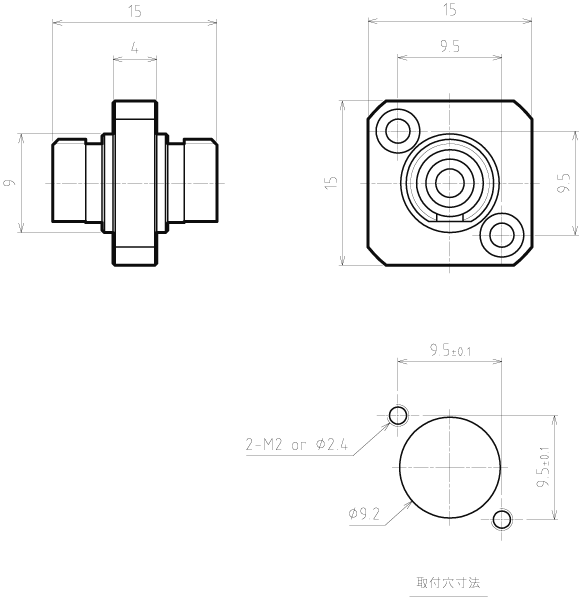

FC-FC adapter

individually name part number DXF file
FC-FC adapter P2382642 Download DXF file

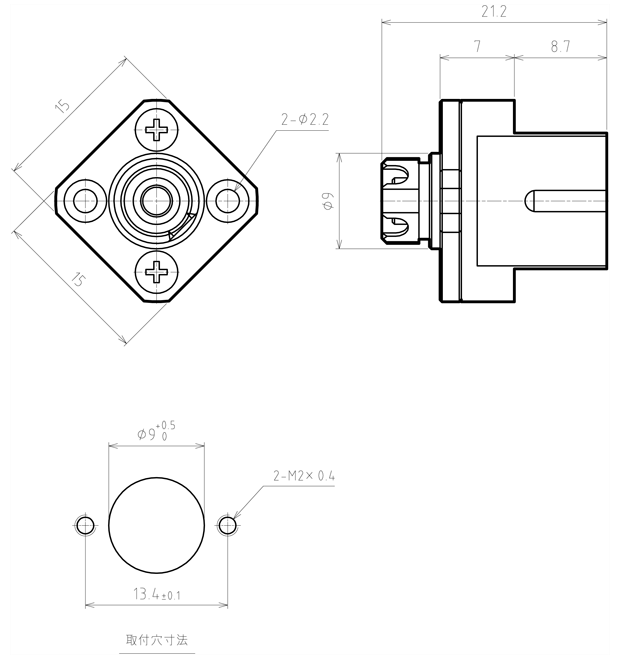

FC-SC adapter

individually name part number DXF file
SC-FC adapter P2382148 Download DXF file

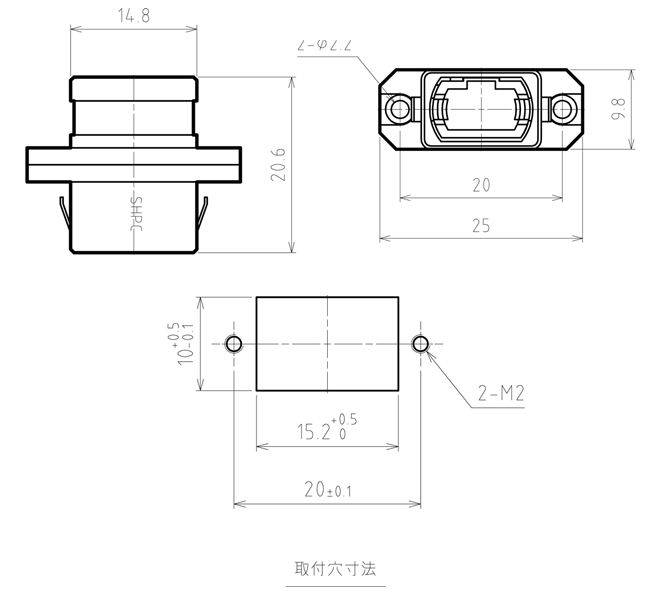

MPO adapter

individually name part number DXF file
MPO adapter PZ400407 Download DXF file

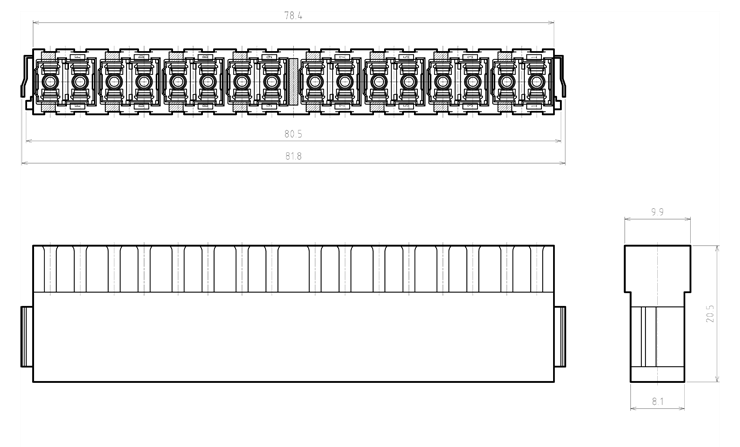

16-position MU receptacle

individually name part number DXF file
16-position MU receptacle
(non split sleeve)		 P2302477 Download DXF file
16-position MU receptacle
(phosphor bronze split sleev)		 P2382654
